Update tool in Neurodesk

Updating an existing container is quite easy with this new build system. Here is a step-by-step on how to procede.

There’s a detailled version at the below including screenshots and an example.

Condensed version

1. Access the Neurodesk Containers repository
2. Fork the repository
3. Using your preferred development environment (such as VS Code locally or GitHub Codespaces), make changes to the desired container.

4. Validate your changes

Make sure your changes are valid. In the terminal, run:

./builder/build.py generate <toolname>

#This second step can take some time
./builder/build.py generate <toolname> --recreate --build --test

5. Commit and push your changes
6. Create a pull request

Detailled version

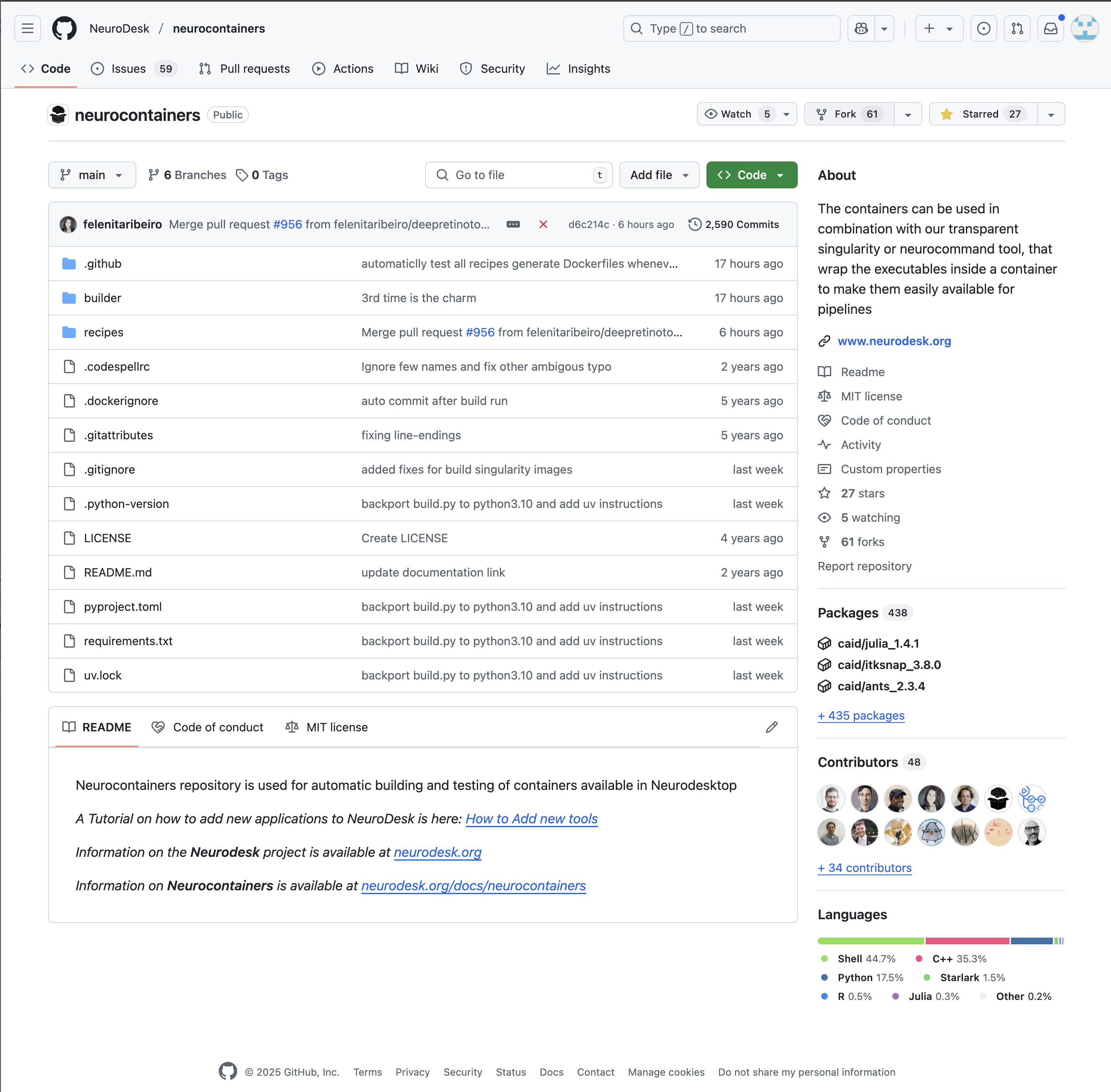

1. Access the Neurodesk Containers

Navigate to the Neurocontainers repository:

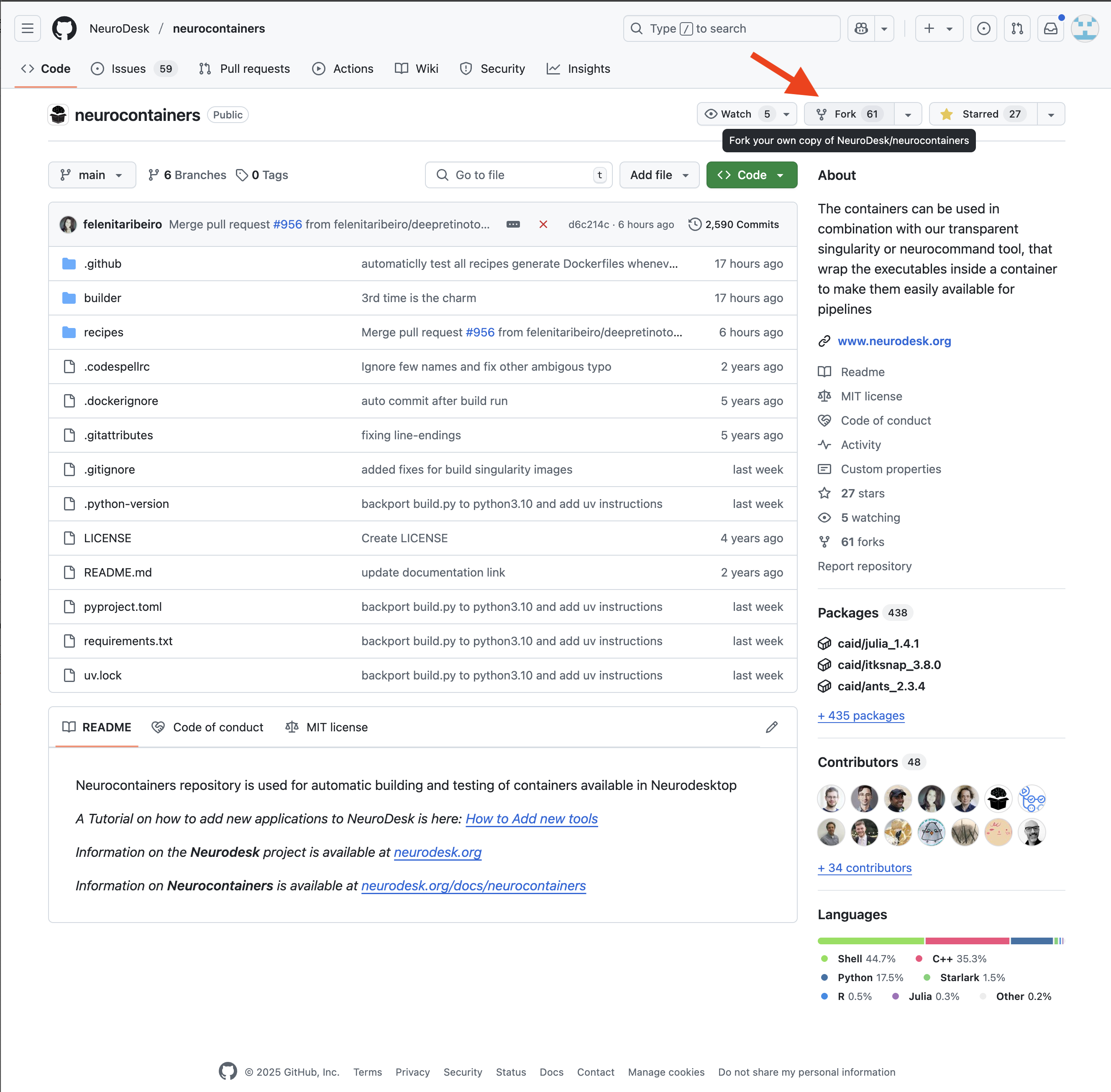

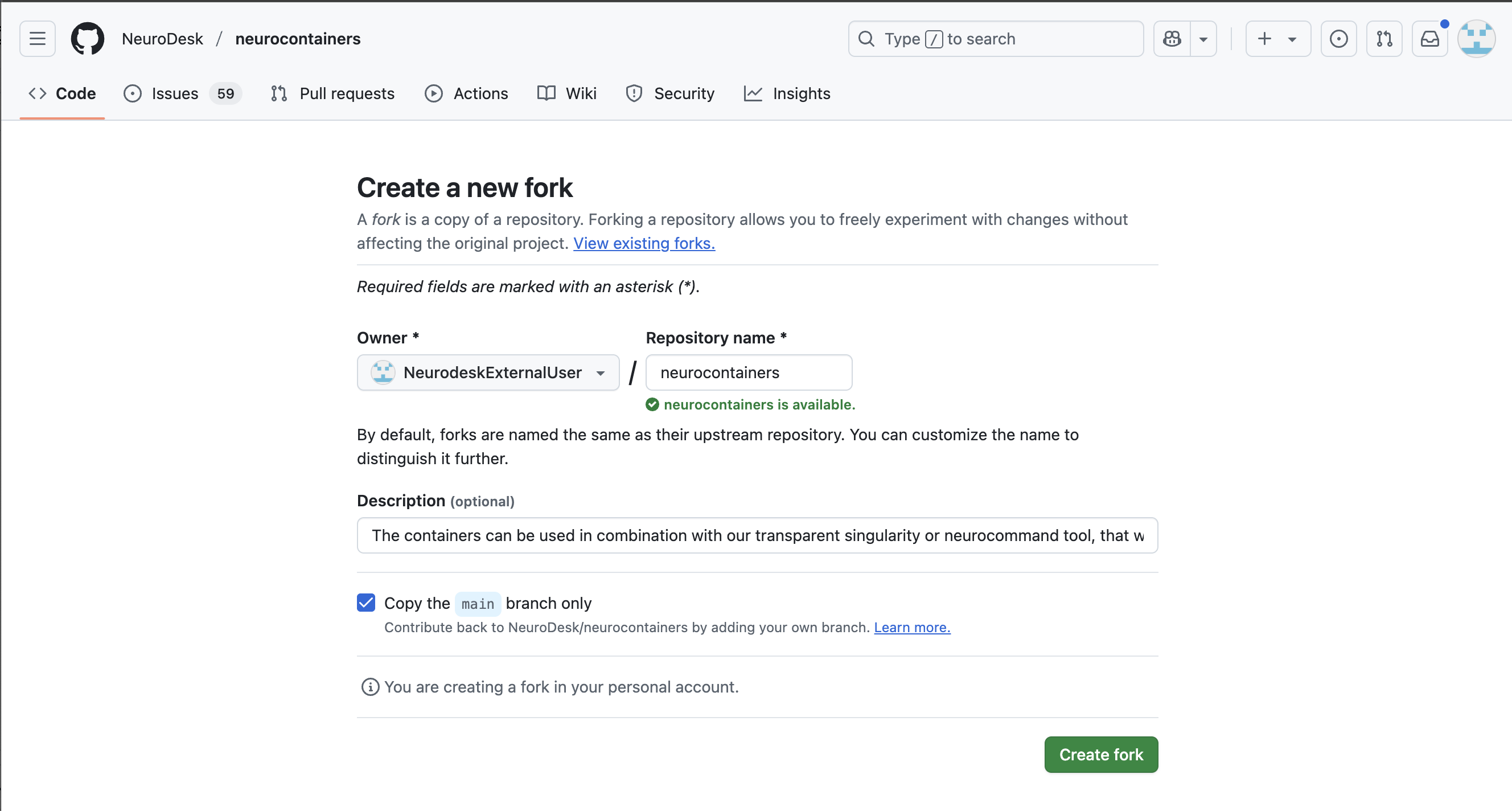

2. Fork the repository

You will then need to fork the Neurodesk repository to your own repositories. This allows you to make changes independently and propose updates.

Naming your repository

You may decide to keep the same name for your new reposoitory, or you may rename it.

Confirming you are on the forked version

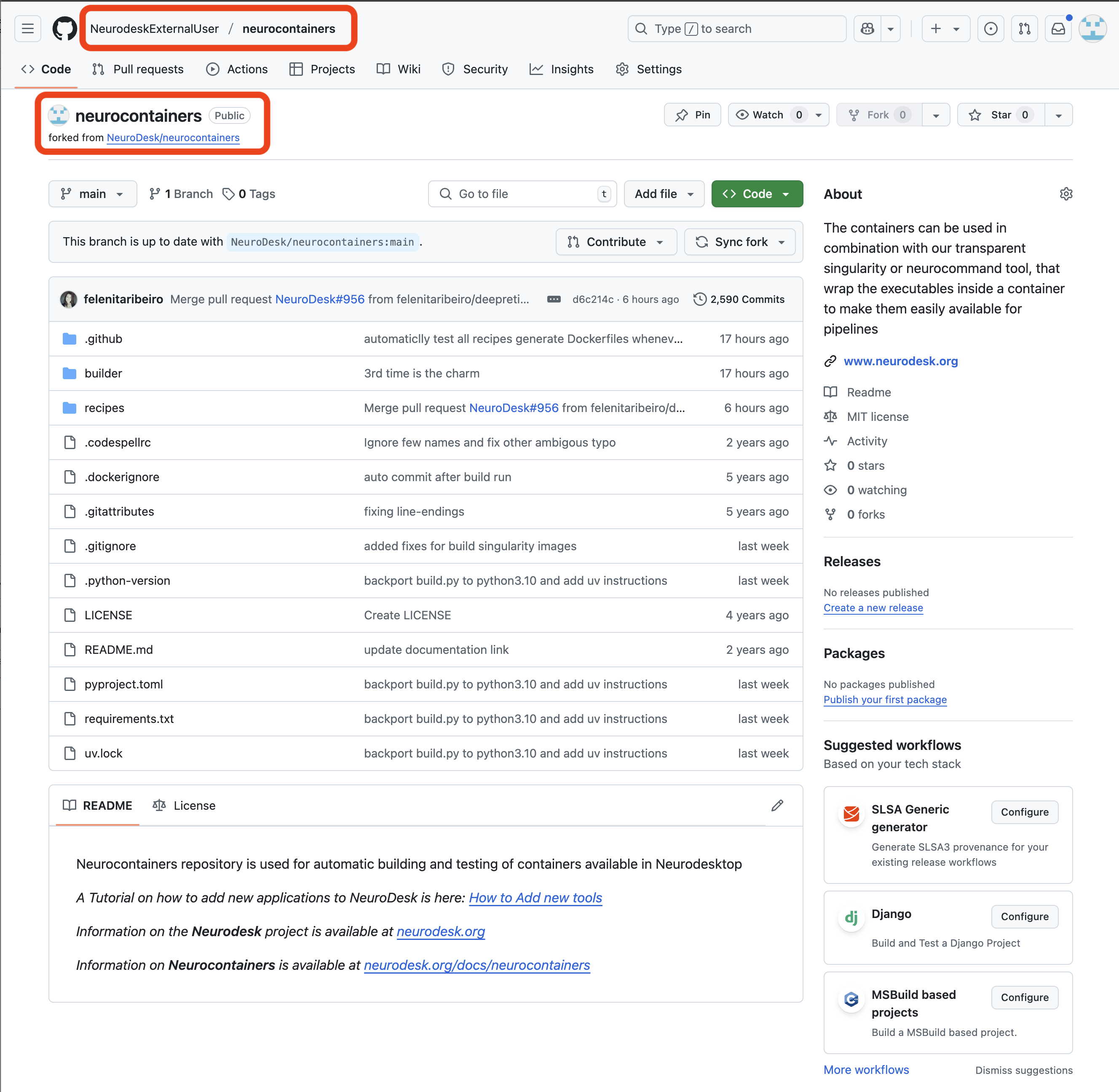

In the top left corner, you can see that you are in your forked repository of the neurocontainers repository.

Keeping your forked repository up-to-date

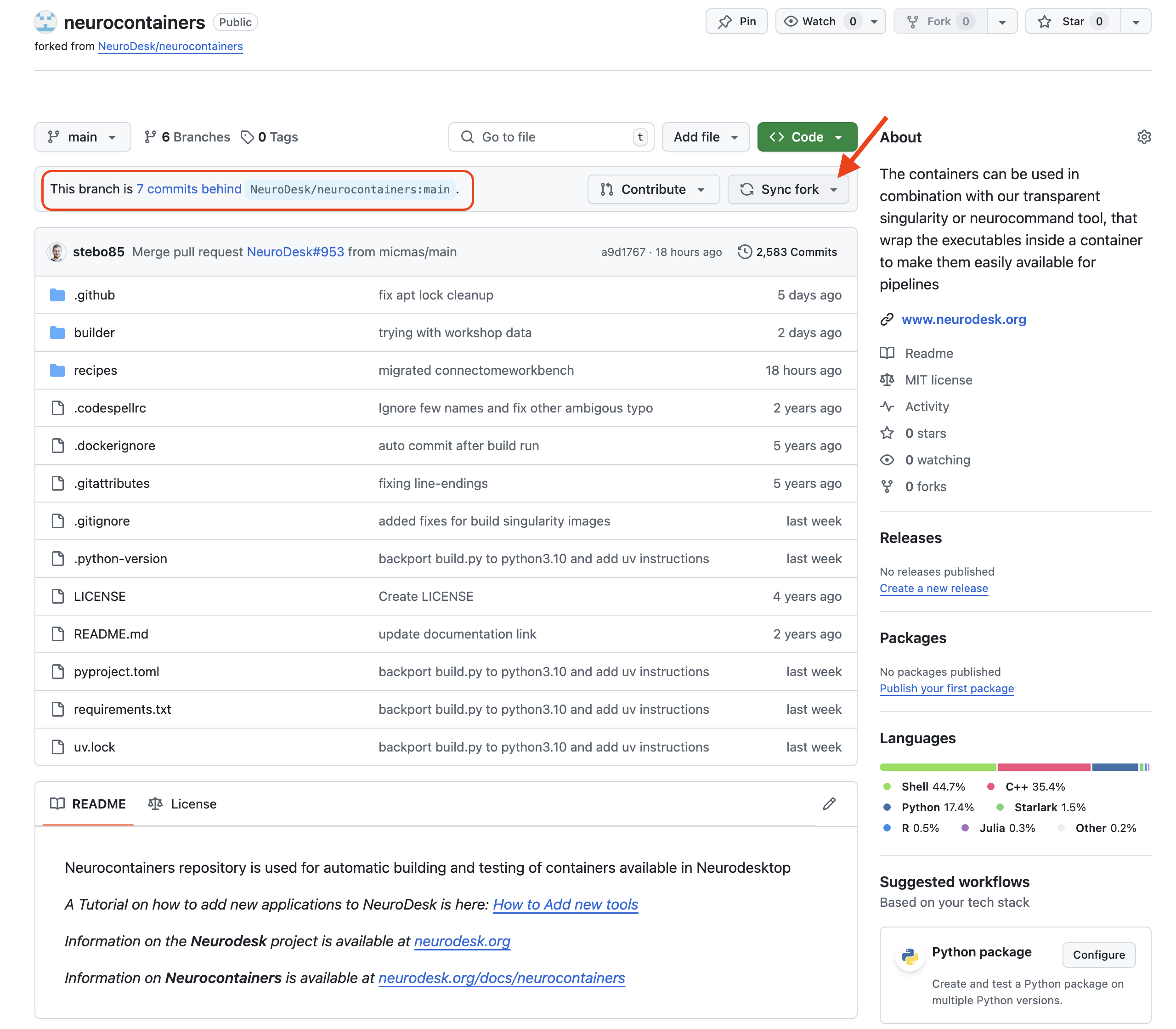

If changes are commited to the Neurodesk/neurocontainers repository, you will see a banner saying you are N commits behind. You may decide to Sync fork, which will update your repository, allowing you to have the most up-to-date files.

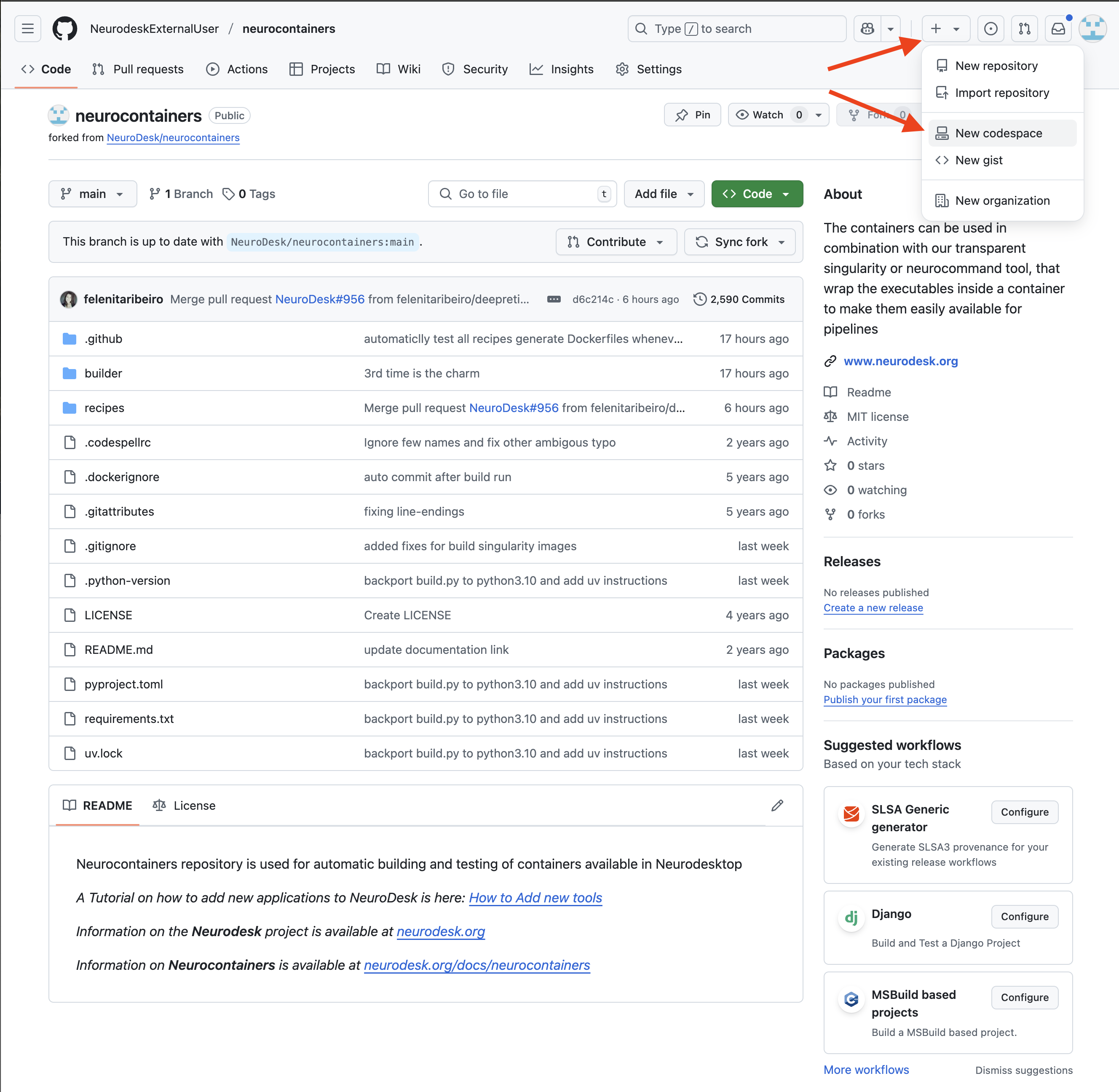

3. Create and Edit a Codespace

Once this is done, you will want to start a Codespace using by:

• Clicking the + (Create new…) button in the top right corner. (it’s a + sign button)
• Selecting Codespaces > New codespace.

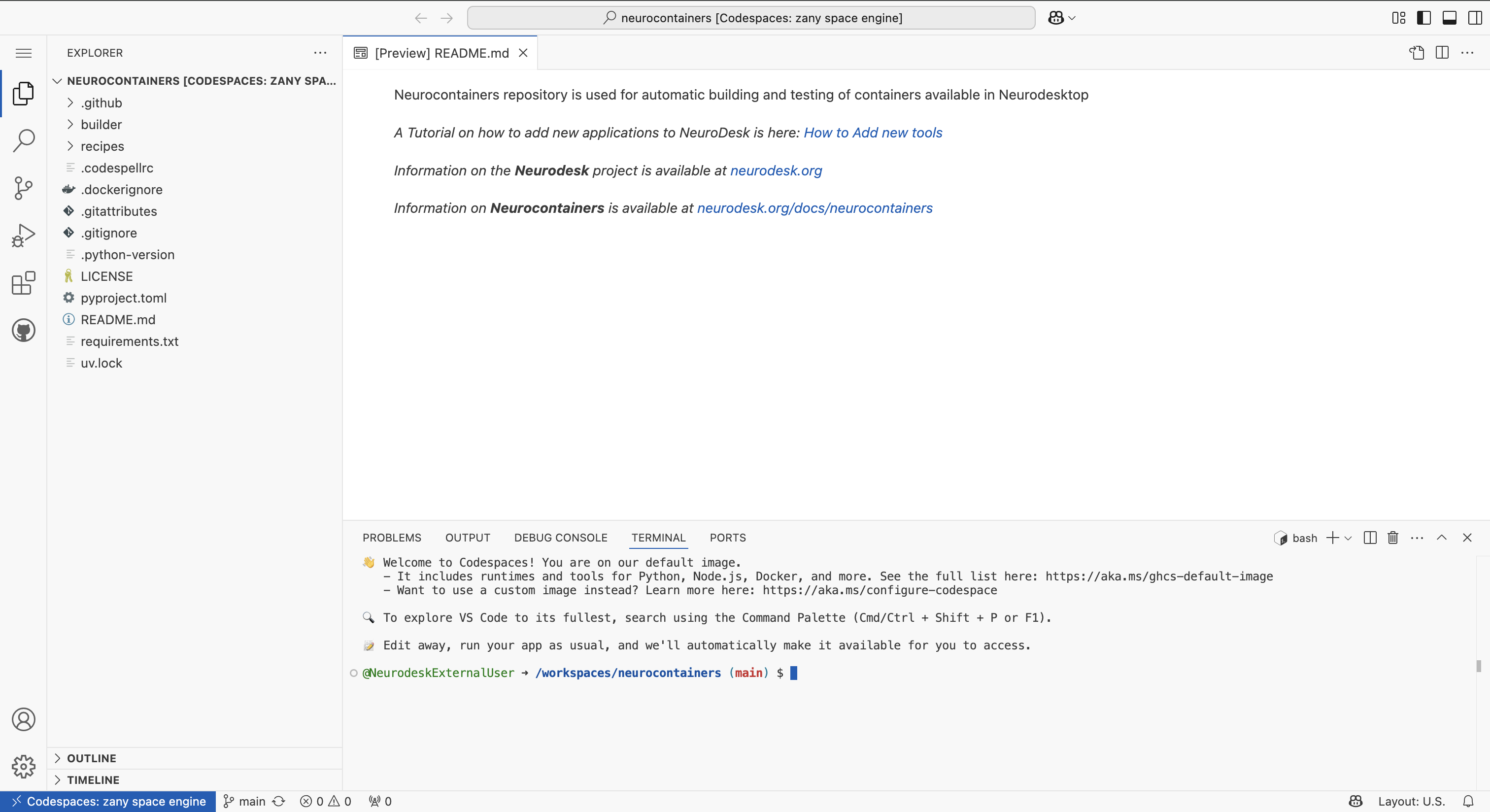

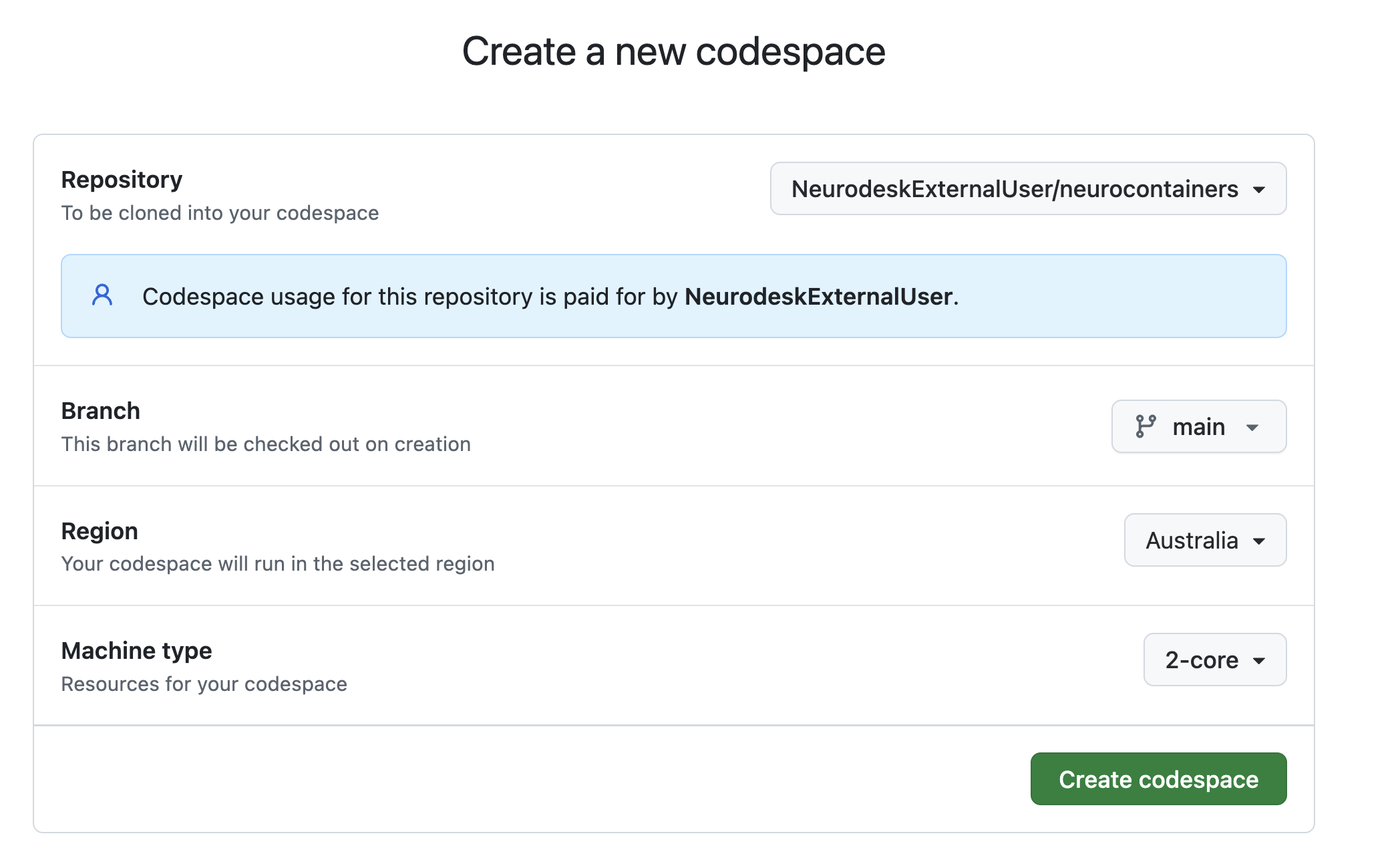

Configure your Codespace.

This opens an editable environment directly in your browser.

In the terminal, run the following lines to configure your codespace environment.

python3 -m venv env
source env/bin/activate
pip install -r requirements.txt

This will install a series of packages to allow you to make changes to neurocontainers.

YAML extension

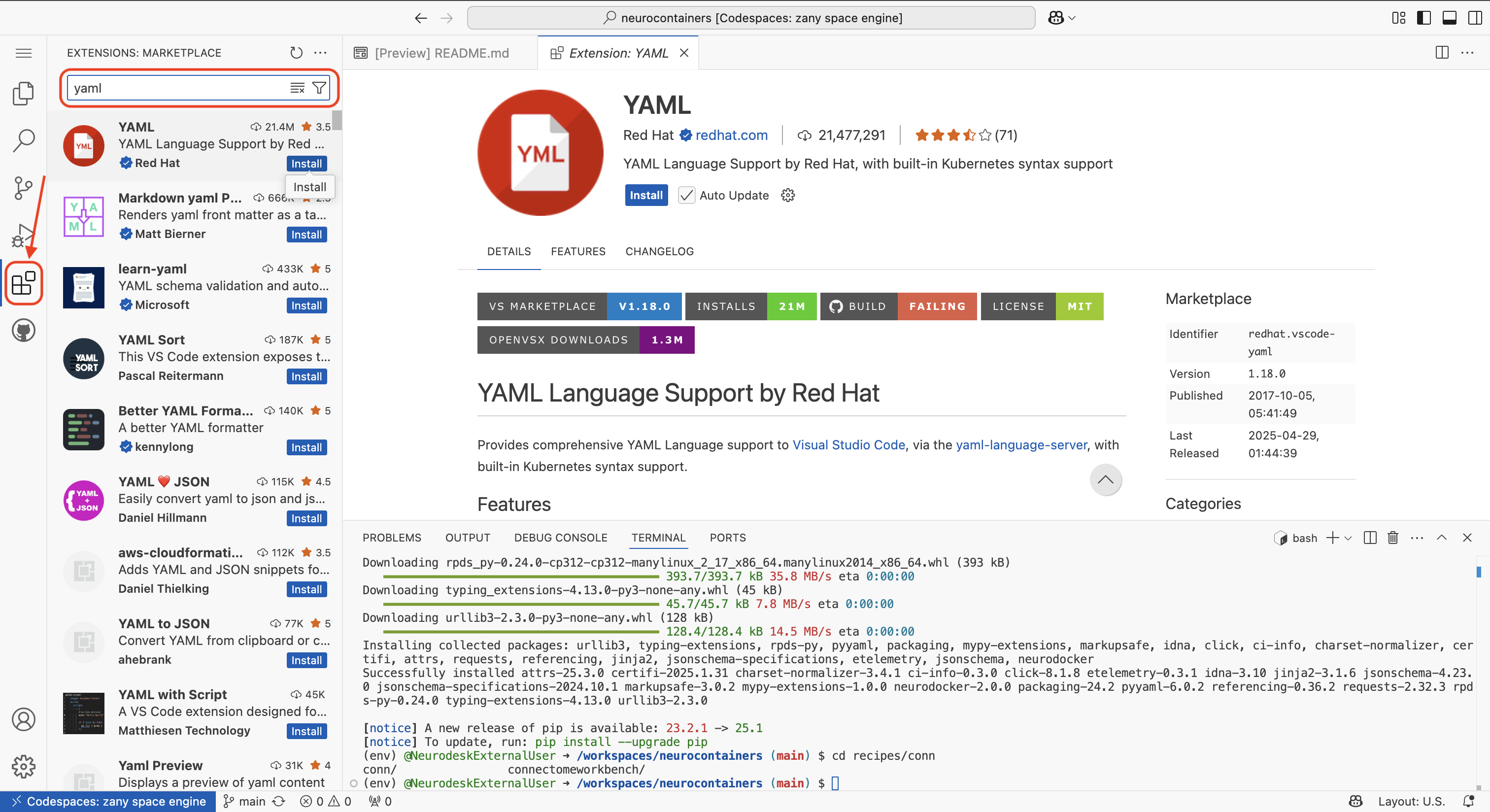

The first time you use a codespace, you will also need to download the YAML extension by navigating to the Extensions tab using icon on the left of your screen and searching for YAML. Click the install button.

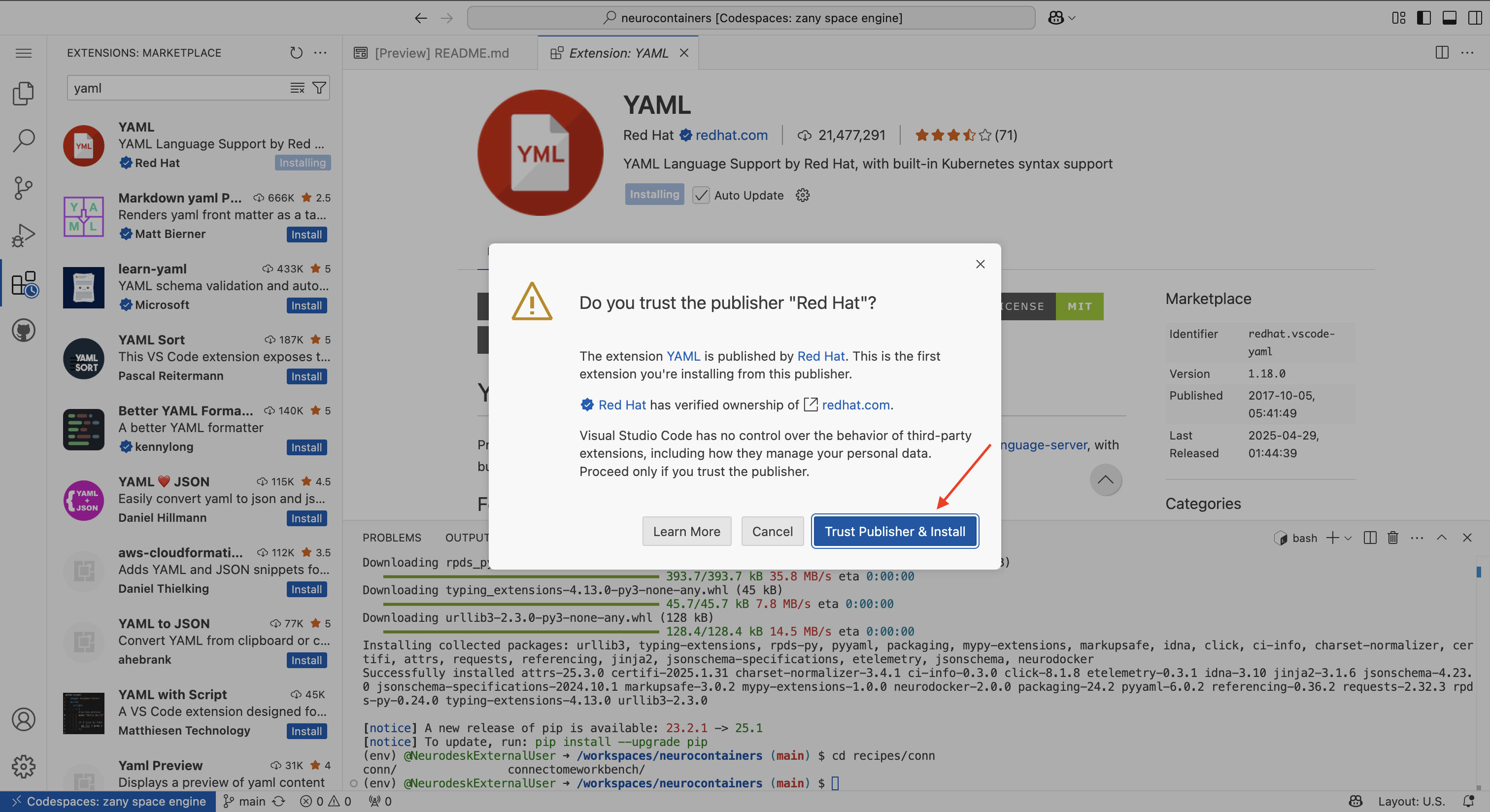

There will be a security pop-up where you will need to click “Trust Publisher & Install”

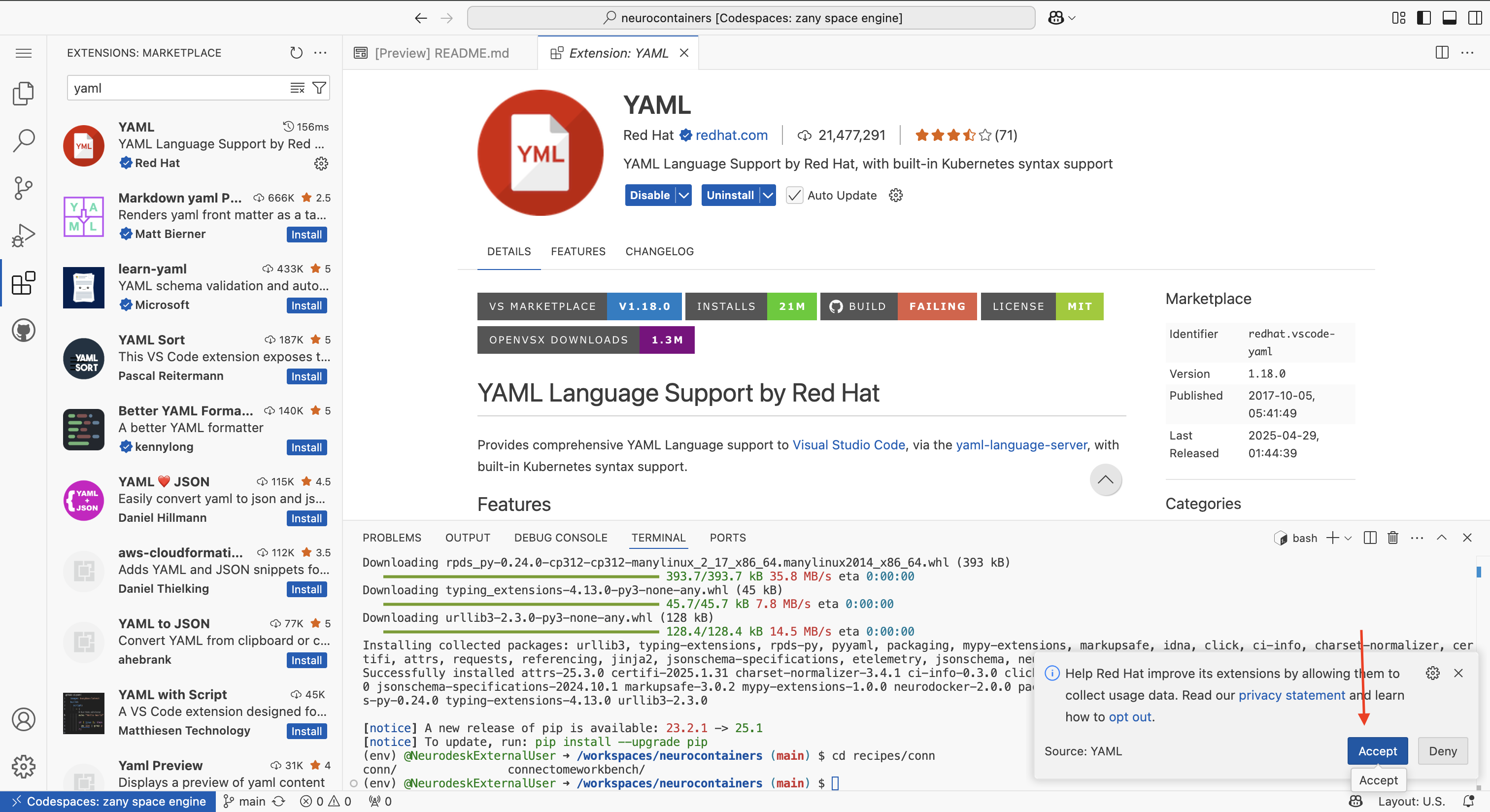

There will be another pop-up asking whether you allow the developers to collect data. You may click “Agree” or “Deny”

4. Make Changes to the desired Container

Navigate back to the Explorer tab using the icon on the left of your screen.

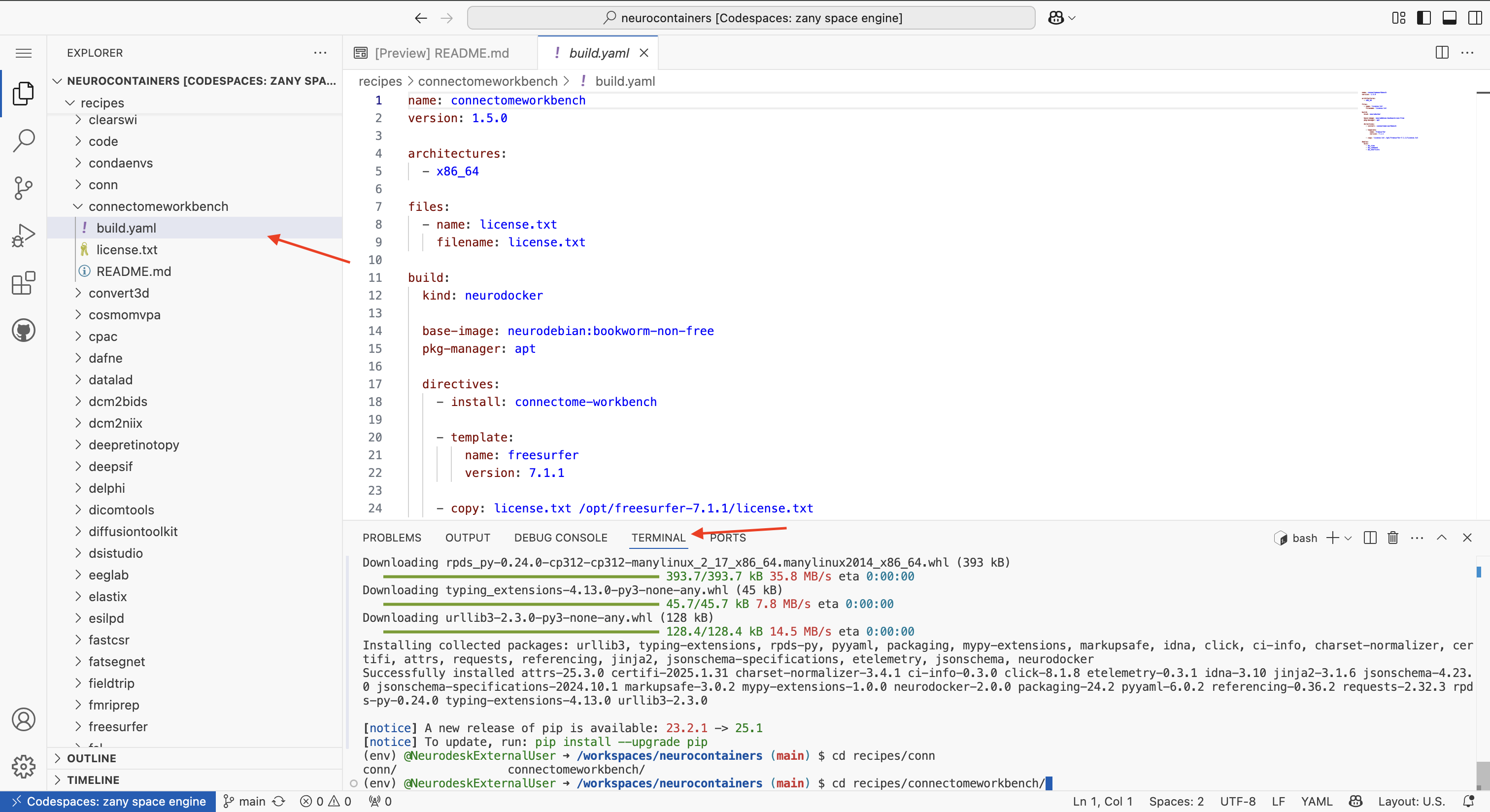

Using either the terminal at the bottom of your Codespace or the file browser on the left, navigate to the build.yaml file of the tool you wish to update.

Each tool has its own folder inside the recipes/ directory, and inside that folder, you will find the corresponding build.yaml file.

• Using the GUI (file browser): Navigate manually to recipes/connectomeworkbench/.
• Using the terminal, you can use:

cd recipes/connectomeworkbench/ #or whichever other neurocontainer you want to update

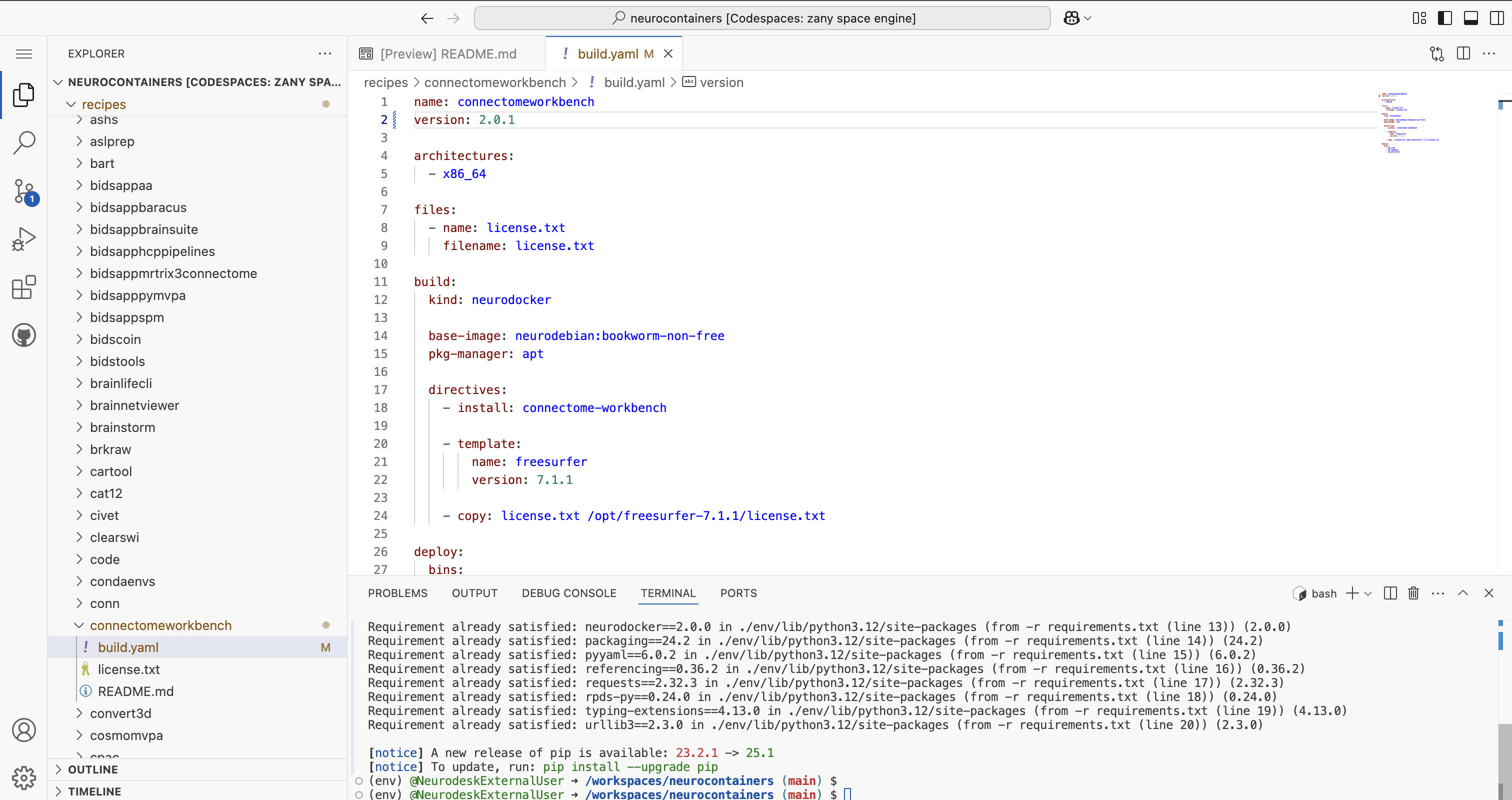

Editing the build.yaml

Open the build.yaml file. Make the necessary updates to:

• Software version numbers
• Dependencies
• Download links
• Build instructions (if needed)

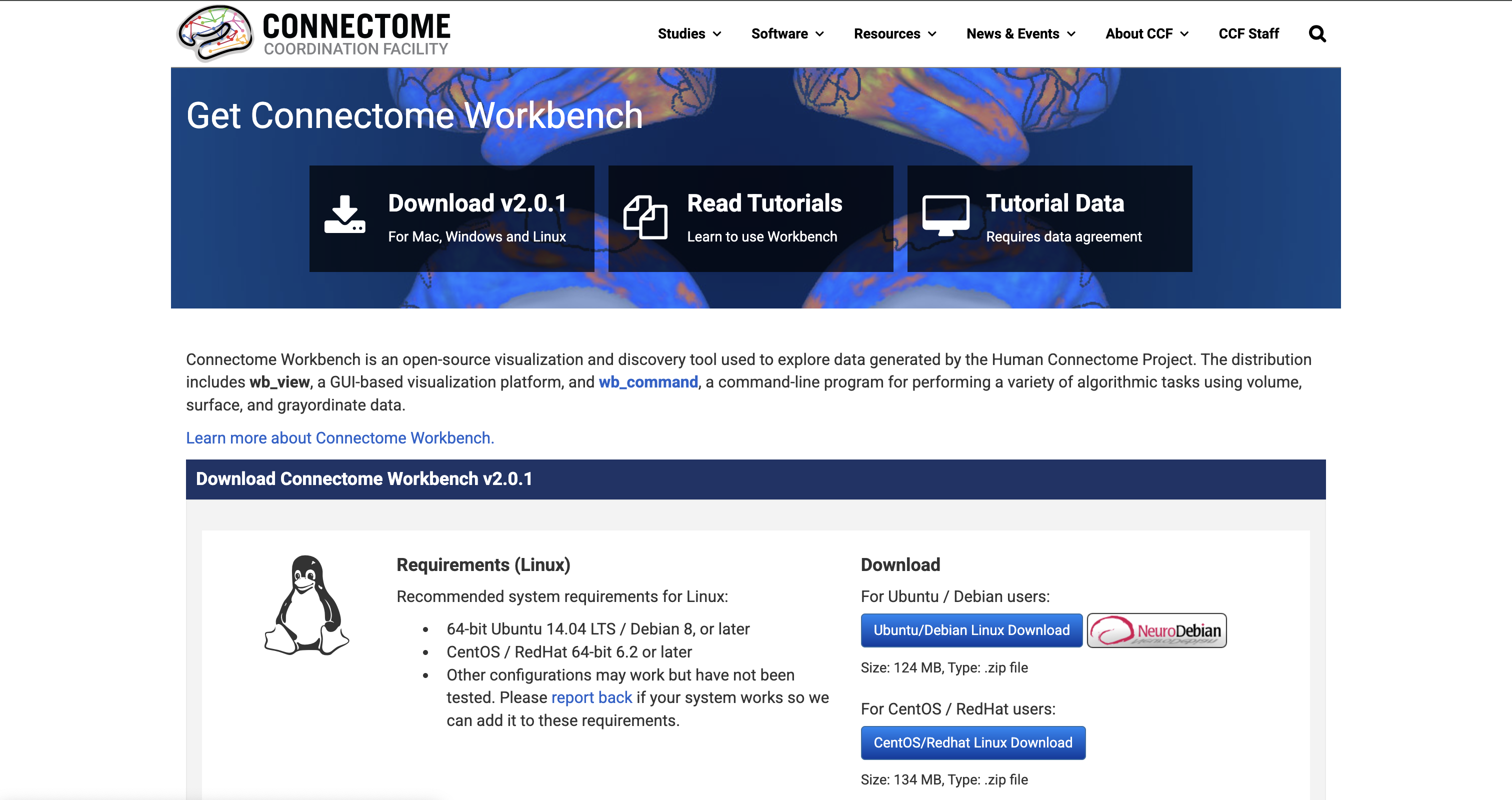

In this example, when we go to the Connectome Workbench website, we can see that the latest version available is Connectome Workbench v2.0.1.

To update Neurocontainer version, simply change the version: to 2.0.1

If you are unsure how to structure the build.yaml, please refer to the examples provided in the Neurocontainers builder documentation.

Once you have made your changes, save the file.

5. Validate Your Changes

Before committing, make sure your changes are valid.

In the terminal, run:

./builder/build.py generate connectomeworkbench #Replace connectomeworkbench with the name of the folder you updated

#This second step can take some time
./builder/build.py generate connectomeworkbench --recreate --build --test #Replace connectomeworkbench with the name of the folder you updated

This script will:

• Parse your build.yaml
• Check for syntax errors
• Show the build steps without actually building the full container

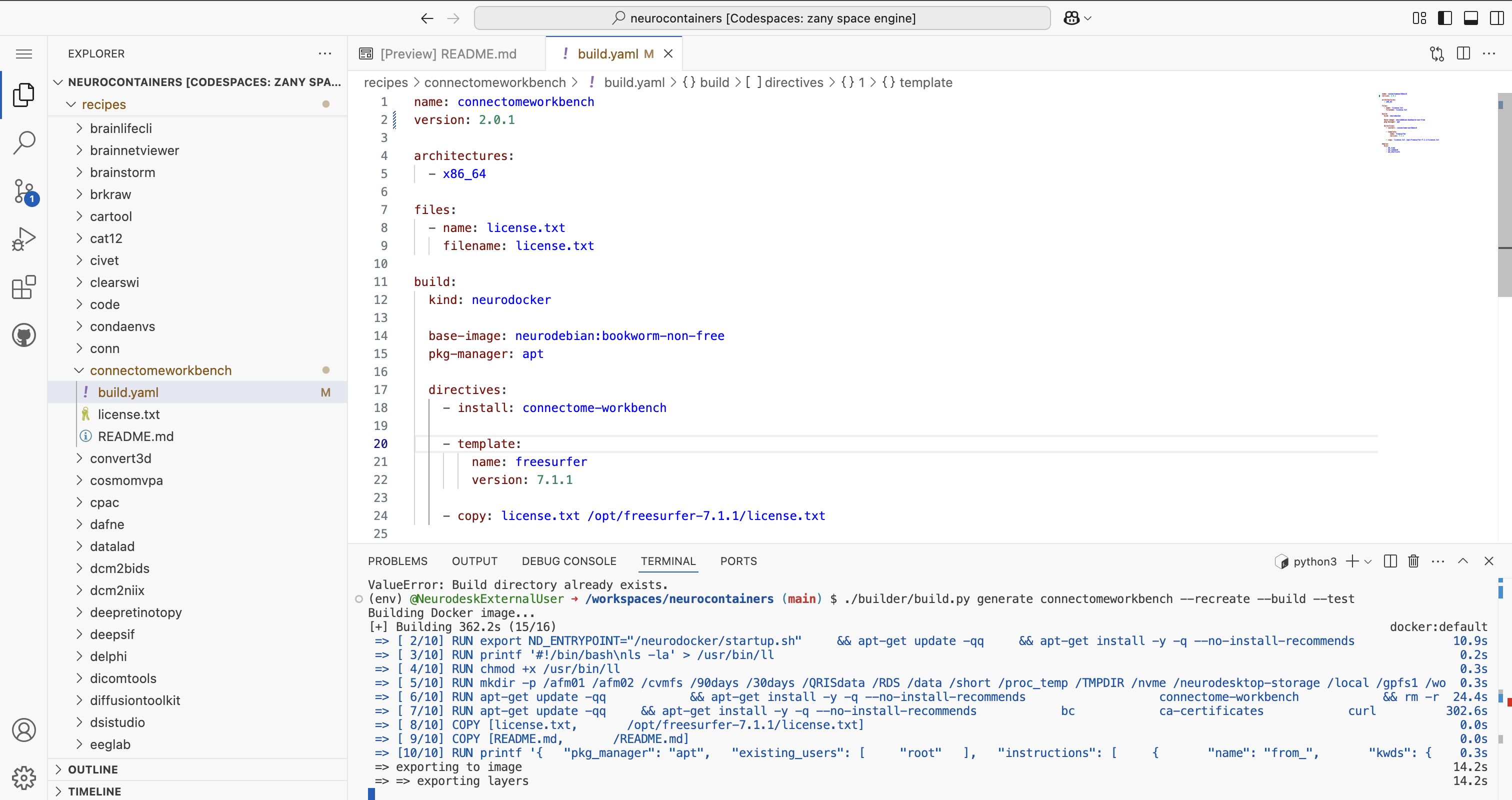

You will be able to see the progress for each of the building steps.

If there are errors, correct them before proceeding.

Once you see Docker image built successfully at connectomeworkbench:2.0.1, you are ready to commit and push your changes.

6. Commit and Push Your Changes

Once you have validated your build.yaml, it’s time to save and upload your work.

In the terminal:

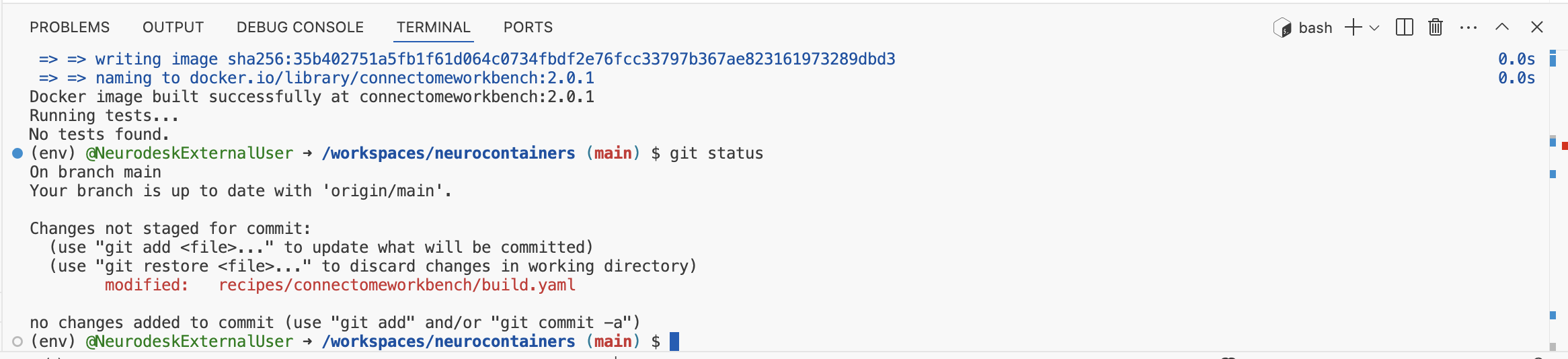

git status

to check which files were changed.

If only this reflects the changes you’ve made, then stage, commit, and push your changes:

git add recipes/connectomeworkbench/build.yaml #Replace connectomeworkbench with the name of the folder you updated
git commit -m "Update connectomeworkbench container: updated version 2.0.1" #Adapt commit message
git push

Make sure your commit message is clear and descriptive, for example:

Update Connectome Workbench container to version 1.5.0 Adjust the commit message based on the updates you made to the neurocontainer.

7. Create a Pull Request

After pushing your changes:

1. Go back to your forked repository on GitHub.

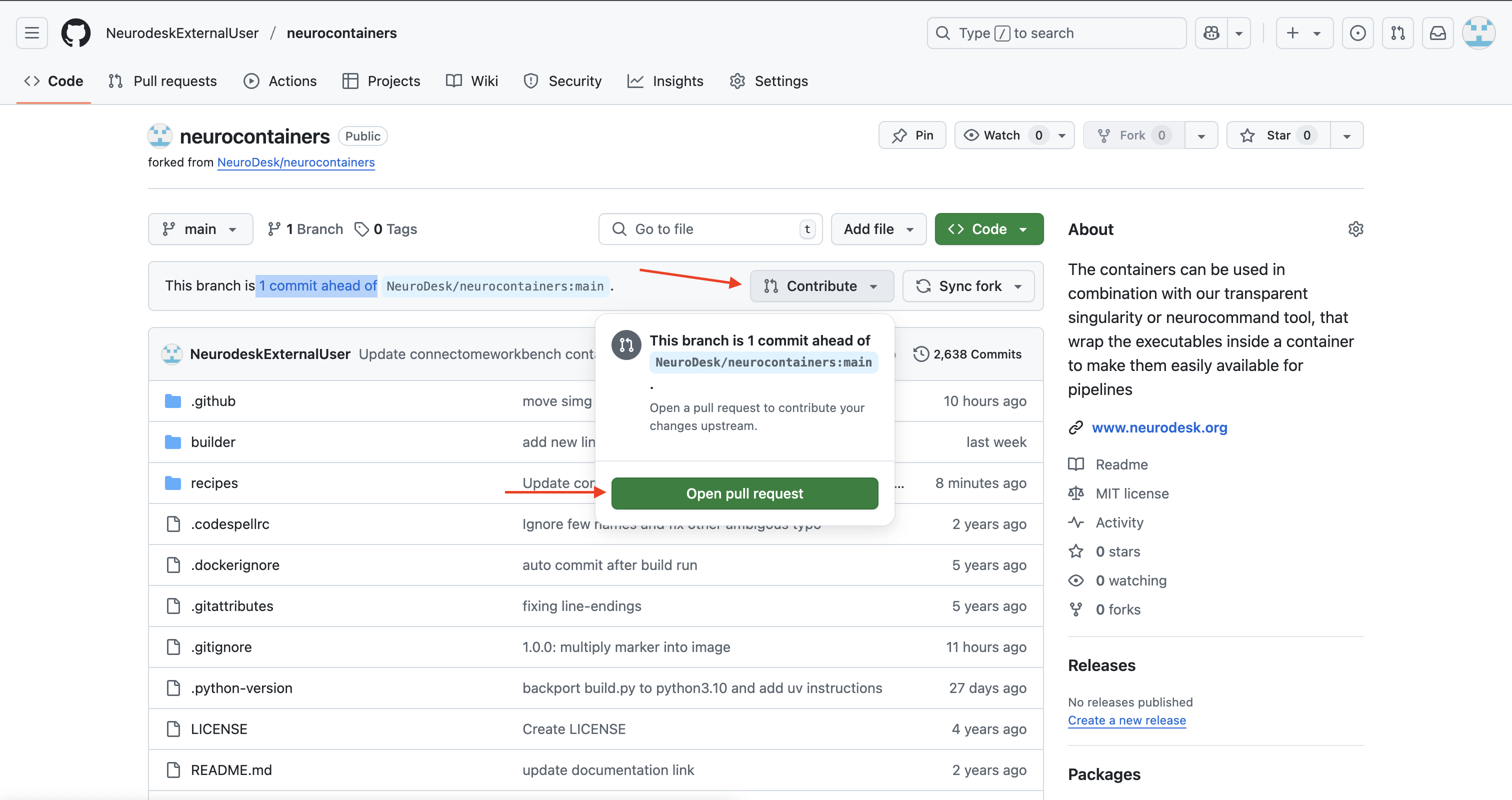

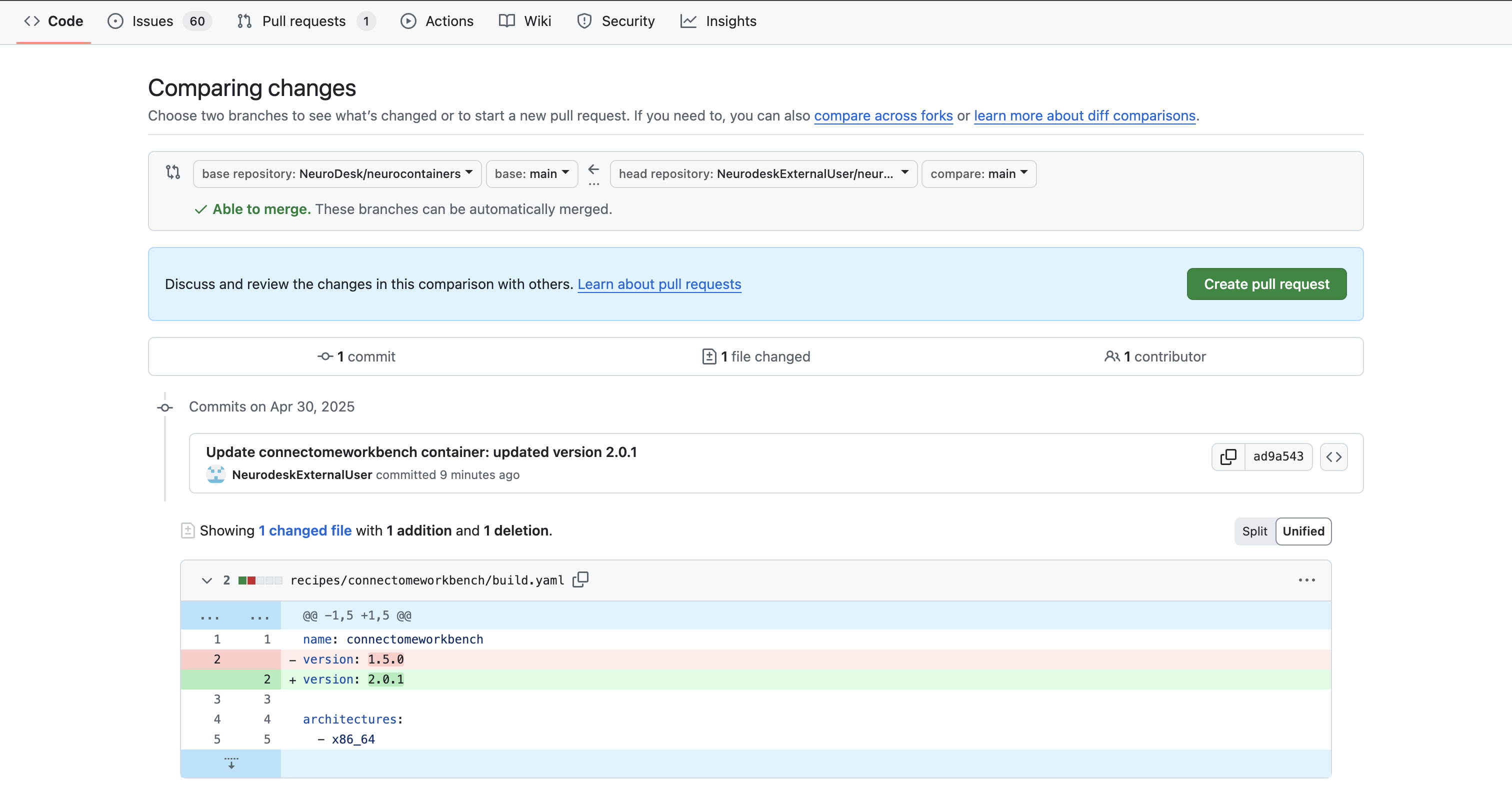

2. You should see a banner saying “This branch is X commits ahead of NeuroDesk/neurocontainers:main”.

You can either click on **X commit ahead of** to view the differences between your repository and the Neurodesk repository and then **Create pull request**

or

click on Contribute > Open pull request.

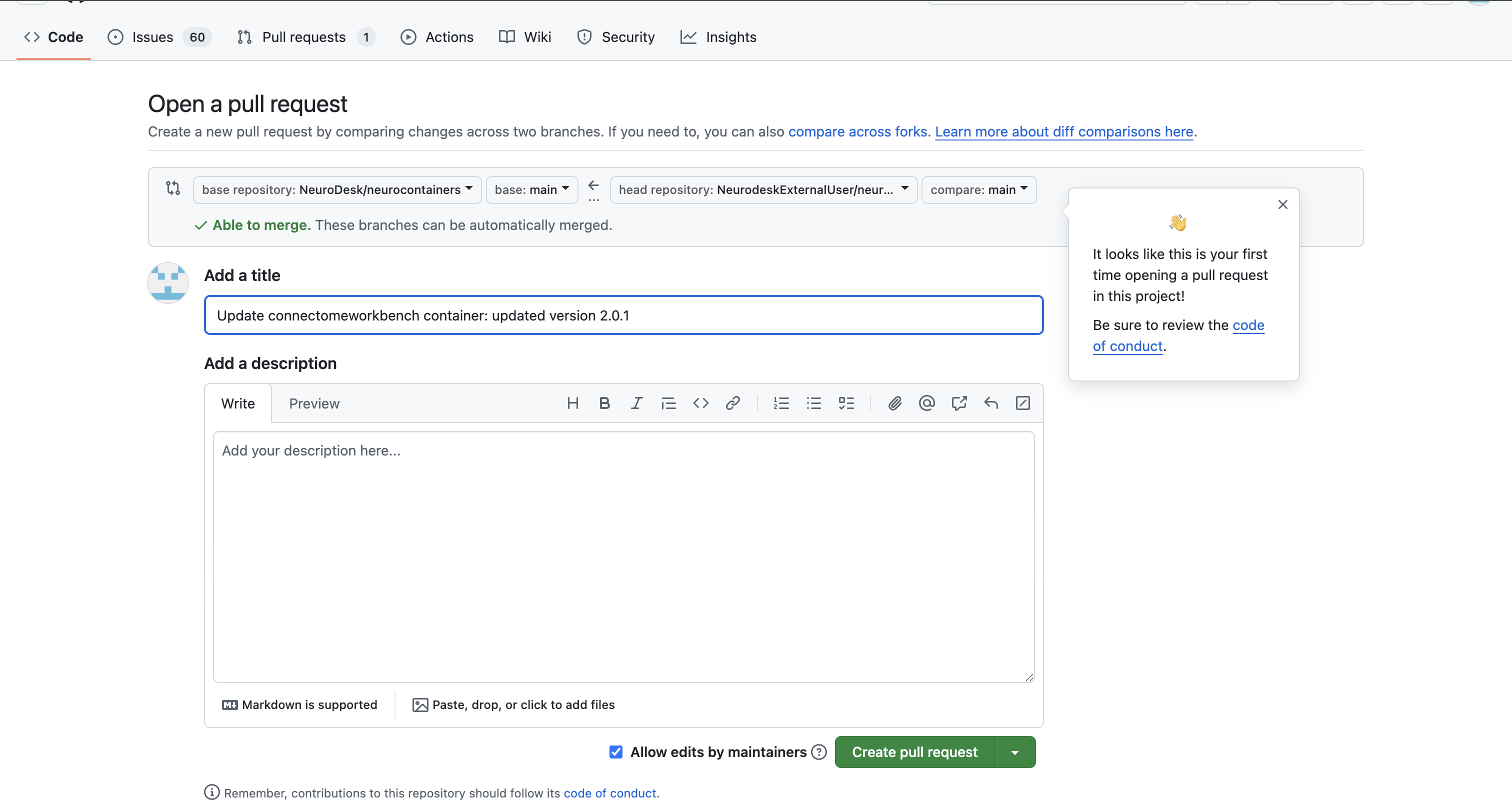

3. In the Pull Request:

• Provide a clear title (e.g., Update Connectome Workbench to v1.5.0)
• Write a brief description of what you changed (version bump, new dependencies, etc.)
• Create the pull request.

Our Neurodesk team will review your proposed update, test the updated container to make sure it work and merge your changes to Neurodesk if everything works correctly, allowing all users to benefit.

More detailed documentation can be found here: https://github.com/NeuroDesk/neurocontainers/tree/main/builder
